Himawari Imagery

Himawari data access was added in pycontrails 0.57.0. This notebook demonstrates basic usage.

import cartopy.crs as ccrs
import cartopy.feature as cfeature
import matplotlib.pyplot as plt

from pycontrails.datalib.goes import GOES
from pycontrails.datalib.goes import extract_visualization as extract_goes_visualization
from pycontrails.datalib.himawari import Himawari
from pycontrails.datalib.himawari import extract_visualization as extract_himawari_visualization

Himawari Interface

The Himawari interface was designed to mirror the GOES interface. See the GOES notebook for some examples.

The table below summarizes the differences in parameters.

Parameter	GOES	Himawari
region	F (Full Disk), C (CONUS), M1 (Mesoscale 1), M2 (Mesoscale 2)	F (Full Disk), J (Japan), T (Target)
bands	C01–C16 (e.g., C11, C14)	B01–B16 (e.g., B11, B14)
bucket	gcp-public-data-goes-16 (GOES-16), None (bucket determined by date)	noaa-himawari8 (Himawari-8), None (bucket determined by date)

There are slight differences in the available channels/bands between GOES and Himawari. Himawari includes a true green band (“B02” in Himawari) and does not include a cirrus band (“C04” in GOES). It’s also worth noting that bands shared between the two instruments differ slightly (e.g., the longwave window bands used for the ash color scheme are centered at 8.6, 11.2, and 12.4 um on Himawari and 8.4, 11.2, and 12.3 um on GOES).

• Himawari band definitions

• GOES band definitions

hima = Himawari(region="F", bands=("B11", "B14", "B15"))
da_h = hima.get("2023-10-01T12:00:00")
da_h

<xarray.DataArray 'CMI' (band_id: 3, y: 5500, x: 5500)> Size: 363MB
dask.array<getitem, shape=(3, 5500, 5500), dtype=float32, chunksize=(1, 5500, 5500), chunktype=numpy.ndarray>
Coordinates:
  * band_id  (band_id) int32 12B 11 14 15
  * x        (x) float32 22kB -0.1537 -0.1537 -0.1536 ... 0.1535 0.1536 0.1536
  * y        (y) float32 22kB 0.1537 0.1537 0.1536 ... -0.1535 -0.1536 -0.1536
    t        datetime64[ns] 8B ...
Attributes:
    crs:            +proj=geos +h=35785863.0 +a=6378137.0 +b=6356752.3 +lon_0...
    long_name:      Advanced Himawari Imager (AHI) brightness temperature
    standard_name:  toa_brightness_temperature
    units:          K

xarray.DataArray

'CMI'

• band_id: 3
• y: 5500
• x: 5500

• dask.array<chunksize=(1, 5500, 5500), meta=np.ndarray>

  Array Chunk Bytes 346.18 MiB 115.39 MiB Shape (3, 5500, 5500) (1, 5500, 5500) Dask graph 3 chunks in 8 graph layers Data type float32 numpy.ndarray

• Coordinates: (4)
  • band_id
    (band_id)
    int32
    11 14 15

    array([11, 14, 15], dtype=int32)

  • x
    (x)
    float32
    -0.1537 -0.1537 ... 0.1536 0.1536

    units :

    rad

    axis :

    X

    long_name :

    AHI fixed grid projection x-coordinate

    standard_name :

    projection_x_coordinate

    array([-0.15372 , -0.153664, -0.153608, ...,  0.153496,  0.153552,  0.153608],
          shape=(5500,), dtype=float32)

  • y
    (y)
    float32
    0.1537 0.1537 ... -0.1536 -0.1536

    units :

    rad

    axis :

    Y

    long_name :

    AHI fixed grid projection y-coordinate

    standard_name :

    projection_y_coordinate

    array([ 0.15372 ,  0.153664,  0.153608, ..., -0.153496, -0.153552, -0.153608],
          shape=(5500,), dtype=float32)

  • t
    ()
    datetime64[ns]
    ...

    [1 values with dtype=datetime64[ns]]

• Indexes: (3)
  • band_id
    PandasIndex

    PandasIndex(Index([11, 14, 15], dtype='int32', name='band_id'))

  • x
    PandasIndex

    PandasIndex(Index([-0.15371990203857422,  -0.1536640226840973, -0.15360812842845917,
           -0.15355223417282104,  -0.1534963697195053,  -0.1534404754638672,
           -0.15338458120822906, -0.15332868695259094,   -0.153272807598114,
            -0.1532169133424759,
           ...
            0.15310513973236084,  0.15316101908683777,   0.1532169133424759,
              0.153272807598114,  0.15332868695259094,  0.15338458120822906,
             0.1534404754638672,   0.1534963697195053,  0.15355223417282104,
            0.15360812842845917],
          dtype='float32', name='x', length=5500))

  • y
    PandasIndex

    PandasIndex(Index([ 0.15371990203857422,   0.1536640226840973,  0.15360812842845917,
            0.15355223417282104,   0.1534963697195053,   0.1534404754638672,
            0.15338458120822906,  0.15332868695259094,    0.153272807598114,
             0.1532169133424759,
           ...
           -0.15310513973236084, -0.15316101908683777,  -0.1532169133424759,
             -0.153272807598114, -0.15332868695259094, -0.15338458120822906,
            -0.1534404754638672,  -0.1534963697195053, -0.15355223417282104,
           -0.15360812842845917],
          dtype='float32', name='y', length=5500))

• Attributes: (4)

  crs :

  +proj=geos +h=35785863.0 +a=6378137.0 +b=6356752.3 +lon_0=140.7 +sweep=x +units=m +no_defs

  long_name :

  Advanced Himawari Imager (AHI) brightness temperature

  standard_name :

  toa_brightness_temperature

  units :

  K

Visualize Himawari

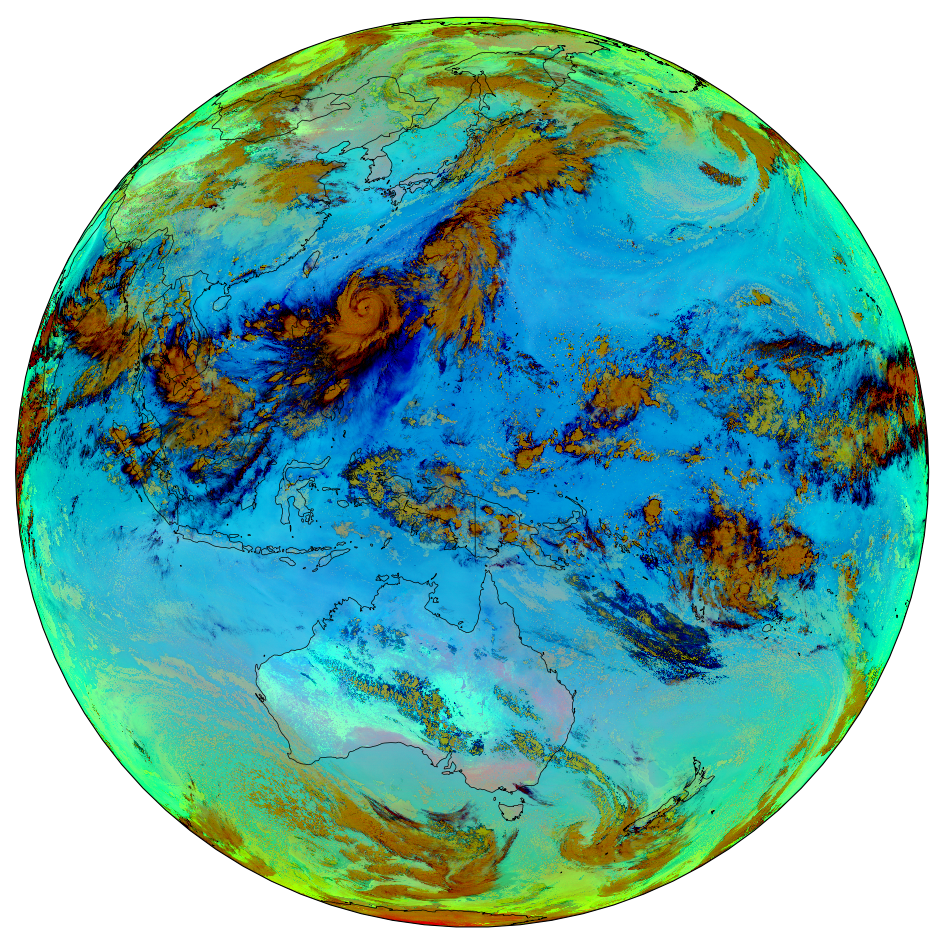

Use the extract_visualization function to create the necessary data for a matplotlib + cartopy visualization. Just as with GOES data, set the color_scheme parameter to one of "true" or "ash" to create RGB composites.

rgb, src_crs, src_extent = extract_himawari_visualization(da_h, color_scheme="ash")

fig = plt.figure(figsize=(12, 12))
ax = fig.add_subplot(projection=src_crs)
ax.coastlines(resolution="50m", color="black", linewidth=0.5)
ax.add_feature(cfeature.BORDERS, edgecolor="black", linewidth=0.5)

ax.imshow(rgb, extent=src_extent, transform=src_crs, interpolation="none");

GEO Mosaic

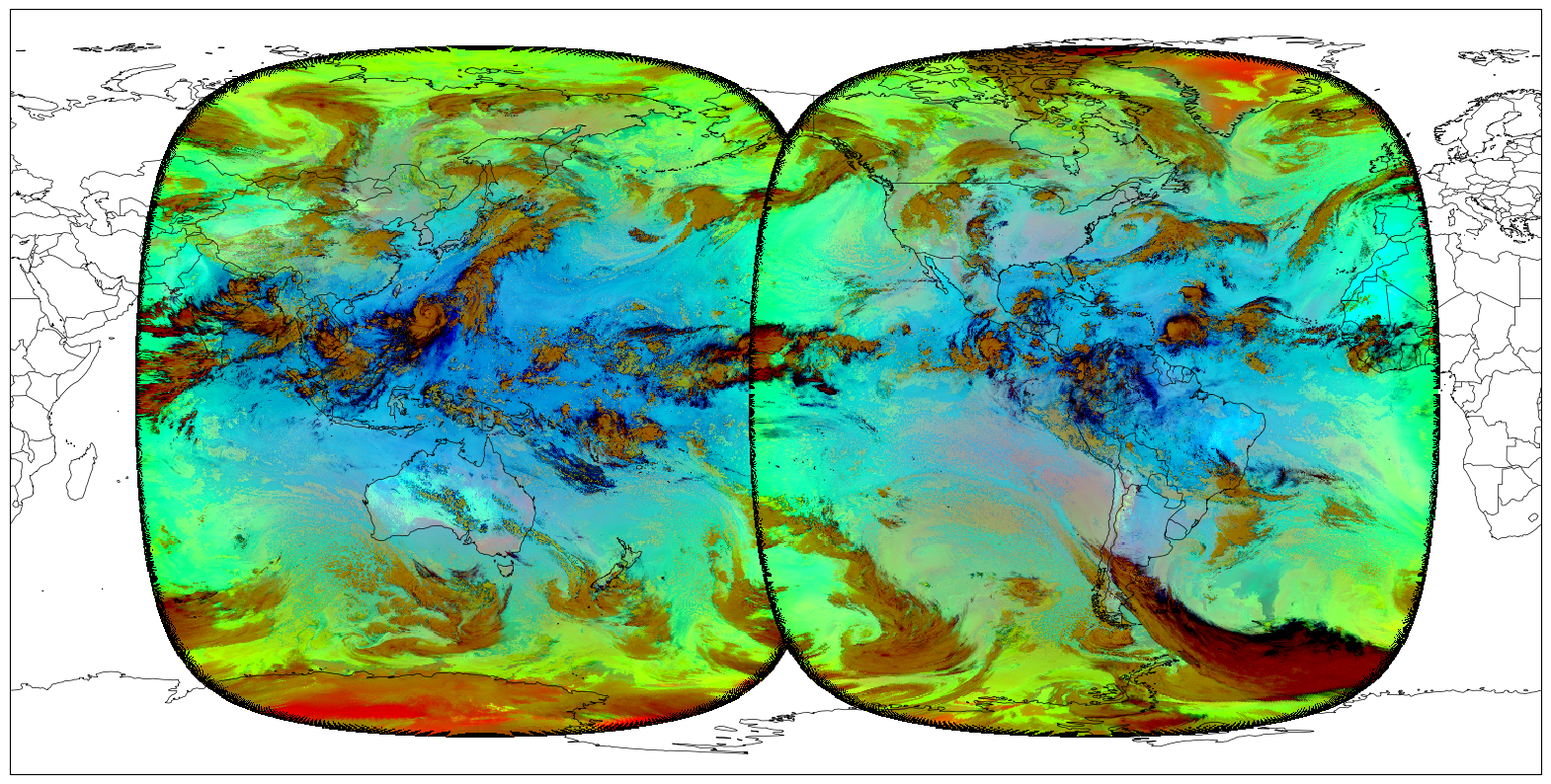

It’s possible to stitch together GOES and Himawari imagery to create a near-global mosaic. While the corresponding bands are similar, they are not identical. This explains some of the color differences across the seam in the mosaic below.

rgb_h, src_crs_h, src_extent_h = extract_himawari_visualization(da_h)

da_g = GOES(region="F", channels=("C11", "C14", "C15")).get("2023-10-01T12:00:00")
rgb_g, src_crs_g, src_extent_g = extract_goes_visualization(da_g)

dst_crs = ccrs.PlateCarree(central_longitude=-150.0)

fig = plt.figure(figsize=(20, 12))
ax = fig.add_subplot(projection=dst_crs)
ax.coastlines(resolution="50m", color="black", linewidth=0.5)
ax.add_feature(cfeature.BORDERS, edgecolor="black", linewidth=0.5)

ax.imshow(rgb_h, extent=src_extent_h, transform=src_crs_h, interpolation="none")
ax.imshow(rgb_g, extent=src_extent_g, transform=src_crs_g, interpolation="none");

Himawari regional imagery

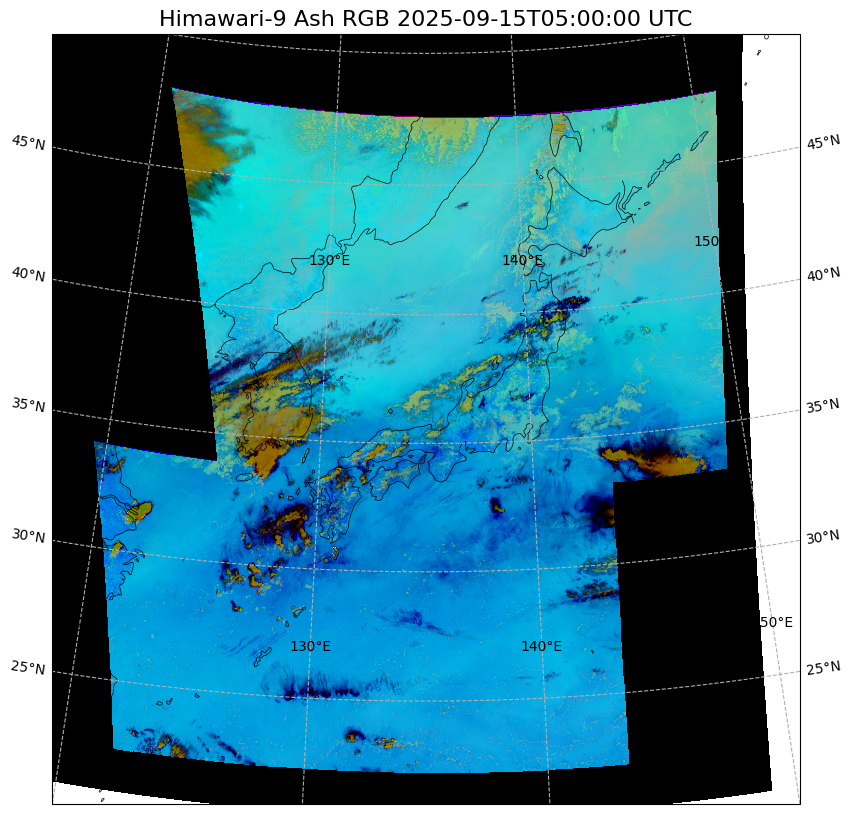

Himawari data is available for a Japan region (region='J') and a dynamic target region (region='T'). Imagery over both are available every 2.5 minutes.

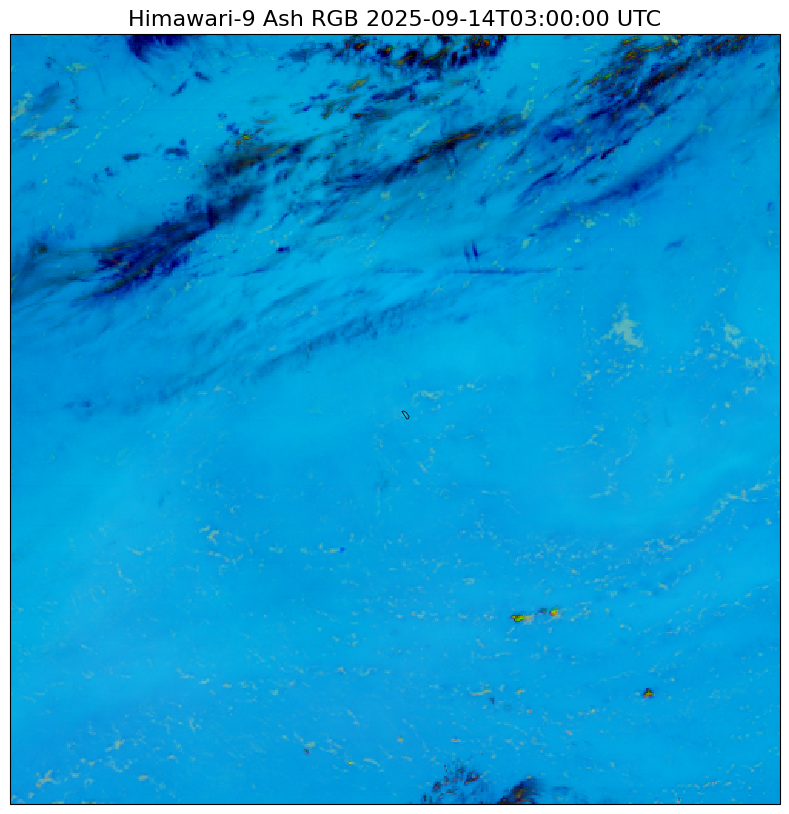

The two examples below were cherrypicked to show examples of contrail cirrus.

hima = Himawari(region="J")

t = "2025-09-15T05:00:00"
da_h = hima.get(t)

rgb, src_crs, src_extent = extract_himawari_visualization(da_h, color_scheme="ash")

dst_crs = ccrs.LambertConformal(
    central_longitude=135,
    central_latitude=35,
    standard_parallels=(30, 40),
)

fig = plt.figure(figsize=(10, 10))
ax = fig.add_subplot(projection=dst_crs, extent=[120, 150, 20, 50])
ax.imshow(rgb, extent=src_extent, transform=src_crs, interpolation="none")

ax.coastlines(resolution="50m", color="black", linewidth=0.5)
ax.add_feature(cfeature.BORDERS, edgecolor="black", linewidth=0.5)
ax.set_title(f"Himawari-9 Ash RGB {t} UTC", fontsize=16)

gl = ax.gridlines(draw_labels=True, linestyle="--");

hima = Himawari(region="T")

t = "2025-09-14T03:00:00"
da_h = hima.get(t)

rgb, src_crs, src_extent = extract_himawari_visualization(da_h, color_scheme="ash")

fig = plt.figure(figsize=(10, 10))
ax = fig.add_subplot(projection=src_crs)
ax.imshow(rgb, extent=src_extent, transform=src_crs, interpolation="none")

ax.coastlines(resolution="50m", color="black", linewidth=0.5)
ax.add_feature(cfeature.BORDERS, edgecolor="black", linewidth=0.5)
ax.set_title(f"Himawari-9 Ash RGB {t} UTC", fontsize=16);
